Ezi-Slide Aislesaver®

APC Ezi-Slide Aislesaver® mobile shelving system represents the ultimate refinement in push-pull high density storage.

Our manual (push-pull) Aislesaver, Ezi-Slide®, is a perfect light-weight mobile shelving system for any storage and filing application. Designed and manufactured in Australia, the Ezi-Slide Aislesaver® incorporates low profile tracks, with discreet anti-tilt mechanism, to reduce the chance of operator strain and loads imposed on the floor. Users can move block-loads up to 1000kg effortlessly. APC's mobile shelving systems provide the ultimate usage of the available storage area and have a large range of standard sizes that can also be tailor-made to suit your specific needs.

Download Brochure

Colours

White Satin
Cyber Grey

Custom colours available upon request.

Key Features and Benefits

  • Low profile track system (wheelchair friendly)
  • Easy to operate and move - compliant with OH&S Standards
  • Strong and durable long lasting quality storage system
  • Shelving designed to the Australian Standard (AS 2143-1978) & ASI Guide
  • Modular - easily adapts to change and expansion
  • Tracks do not require fixing, eliminating any damage to floor coverings
  • Crinolin steel strips provide hard wearing runner surface for smooth operating
  • Shelves can be adjusted in 25mm increments
  • Australian Made
  • 10 Year Warranty - Conditions apply

Technical Specifications

Bays are available in a combination of any of the height, width and depth options below.

Height Width Depth
1875mm 750mm 300mm
2175mm 900mm 400mm
2375mm 1000mm 450mm
1200mm 600mm

Need something more custom?

Let us help you find the right solution. Chat to one of our experts

Further Specification

DRIVE TYPE
  • Manual, Push-Pull Operation
TRACK SYSTEM
  • Low Profile - Above Floor
SHELVING ACCESSORY SYSTEM
  • APC Uni-Shelf
MAXIMUM SYSTEM WIDTH
  • 1800mm (2 x 900mm Bays)
SHELF HEIGHT
  • 30mm
SHELF PITCH
  • 25mm



BAY LOAD CAPACITY
  • 500kg UDL*
SHELF LOAD CAPACITY
  • Standard frames - Up to 1035kg UDL*
  • Reinforced frames - Up to 1700kg UDL*
ANTI-TILT SYSTEM
  • Track and Runner Combination
FINISH
  • Powder coated
  • Vinyl wrapped

*Shelf, beam and bay load capacities vary, please contact APC for specific maximum loads based on final configurations

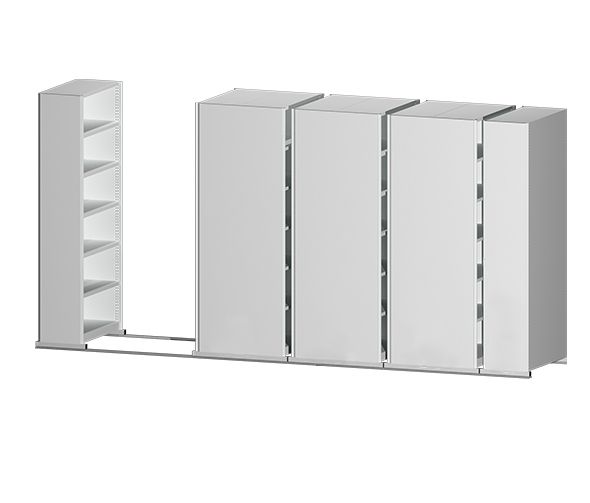

Slide1

Compliance

APC Ezi-Slide Aislesaver complies to the relevant standards and practices for steel shelving.

Australian Steel Institute

  • ASI Industry Guide - Hand loaded steel shelving design and installation

Standards Australia

  • AS/NZS 4600-2005 Cold-formed steel structures
  • AS 4100-1998 Steel structures
  • AS 4506-2005 Metal finishing - Thermoset powder coatings
  • AS/NZS 2728-2007 Prefinished/Prepainted sheet metal products for exterior building applications - Performance requirements
  • AS 3566.1-2002 Self drilling screws for the building and construction industries - General requirements and mechanical properties
  • AS 4291-2000 Mechanical properties of fasteners made of carbon and alloy steels
  • AS1110-2000 ISO metric hexagon bolts and screws - Product grades A and B

Storage Equipment Manufacturers Association (SEMA)

  • Code of practice for the design of low rise static steel shelving
  • Shelving users guide

European Federation of Materials Handling Associations

  • FEM 10.2.06 Design of static steel shelving
Aus

Australian Made

Designed and made in Perth by us for you, our shelving products use sustainable, locally sourced materials such as the high quality BlueScope Steel. Our R&D team is equipped with state-of-the-art sheet metal prototyping that allows our local manufacturing to not only provide small lead times, but additional customisation in relation to the sizing and colour options for our whole steel and mobile shelving range.

http://www.bluescopesteel.com.au

Let us help you find the right solution

Call us on 1300 138 303 or fill in your details below
